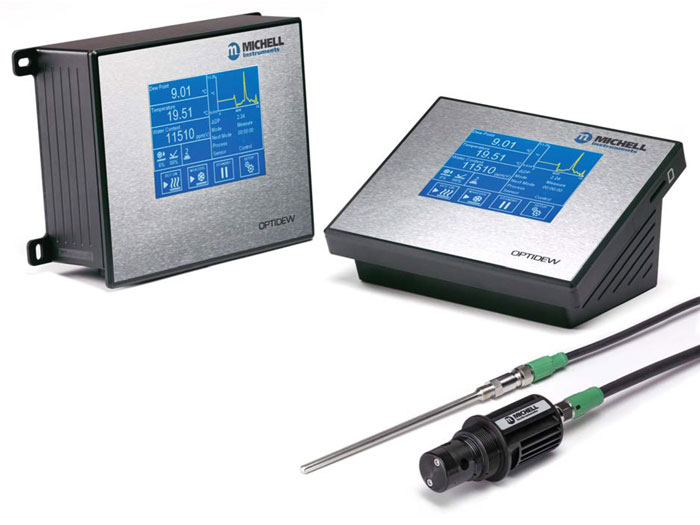

British Michell Instruments MDM401 High Speed Dew Point meter
1. Main technical parameters
Dew point accuracy: ± 0.15 ℃
Repeatability: ± 0.05 ℃
Sensitivity: ± 0.01 ℃
2. Dew point sensor:
First-level Peltier sensor
Dew point range (℃): -30 to + 90 ℃
Temperature range (℃): -40 to + 90 ℃
Relative humidity range at 23 ℃: 1.35 to 100% RH
Mirror temperature measurement: Pt1000, 1/10 DIN Class A
Pressure: ≤2500 kPa
Standard sensor cable: temperature resistance ≤90 ℃
Cable length: 3m
3. Temperature sensor:
Temperature measurement accuracy: ± 0.1 ℃
Cable length: 3m
Temperature measurement: PT100 1/10 DIN Class A
4. Host control unit:
Resolution: 0.1 or 0.01, and adjustable at the same time
Units of measurement: ℃ dew point or ° F dew point, relative humidity-%, absolute humidity-g / m3, ppmV, -g / kg, wet bulb temperature (Twb)-℃, ° F, partial pressure of water vapor (wvp)- Pa, ambient temperature-℃, ° F,
Analog output: two 0 / 4-20mA outputs (load not exceeding 500Ω)
Digital output: Modbus RTU interface is USB, RS485
Data record: SD card
Protection level: IP54
Dimensions: 220x175x118mm
Weight: Control unit: 1.5kg, sensor: 200g
Display: 5.7 ”color touch screen
Operating environment: -20 to + 50 ℃
Supply voltage: 85 to 264VAC, 47 to 63Hz
Power: not more than 15VA
